miasm.analysis.data_flow.DiGraphDefUse Class Reference

Inheritance diagram for miasm.analysis.data_flow.DiGraphDefUse:

Collaboration diagram for miasm.analysis.data_flow.DiGraphDefUse:

Public Member Functions
def	__init__ (self, reaching_defs, deref_mem=False, apply_simp=False, *args, **kwargs)
def	edge_attr (self, src, dst)
def	del_edge (self, src, dst)
def	add_uniq_labeled_edge (self, src, dst, edge_label)
def	add_data_edge (self, src, dst)
def	node2lines (self, node)
Public Member Functions inherited from miasm.core.graph.DiGraph
def	__init__ (self)
def	__repr__ (self)
def	nodes (self)
def	edges (self)
def	merge (self, graph)
def	__add__ (self, graph)
def	copy (self)
def	__eq__ (self, graph)
def	__ne__ (self, other)
def	add_node (self, node)
def	del_node (self, node)
def	add_edge (self, src, dst)
def	add_uniq_edge (self, src, dst)
def	discard_edge (self, src, dst)
def	predecessors_iter (self, node)
def	predecessors (self, node)
def	successors_iter (self, node)
def	successors (self, node)
def	leaves_iter (self)
def	leaves (self)
def	heads_iter (self)
def	heads (self)
def	find_path (self, src, dst, cycles_count=0, done=None)
def	find_path_from_src (self, src, dst, cycles_count=0, done=None)
def	nodeid (self, node)
def	node_attr (self, node)
def	dot (self)
def	predecessors_stop_node_iter (self, node, head)
def	reachable_sons (self, head)
def	reachable_parents (self, leaf)
def	reachable_parents_stop_node (self, leaf, head)
def	compute_dominators (self, head)
def	compute_postdominators (self, leaf)
def	compute_dominator_tree (self, head)
def	walk_dominators (self, node, dominators)
def	walk_postdominators (self, node, postdominators)
def	compute_immediate_dominators (self, head)
def	compute_immediate_postdominators (self, tail)
def	compute_dominance_frontier (self, head)
def	walk_breadth_first_forward (self, head)
def	walk_depth_first_forward (self, head)
def	walk_breadth_first_backward (self, head)
def	walk_depth_first_backward (self, head)
def	has_loop (self)
def	compute_natural_loops (self, head)
def	compute_back_edges (self, head)
def	compute_strongly_connected_components (self)
def	compute_weakly_connected_components (self)
def	replace_node (self, node, new_node)

Additional Inherited Members
Static Public Attributes inherited from miasm.core.graph.DiGraph
	DotCellDescription

Detailed Description

Representation of a Use-Definition graph as defined by
Kennedy, K. (1979). A survey of data flow analysis techniques.
IBM Thomas J. Watson Research Division.
Example:
IR block:
lbl0:
   0 A = 1
     B = 3
   1 B = 2
   2 A = A + B + 4

Def use analysis:
(lbl0, 0, A) => {(lbl0, 2, A)}
(lbl0, 0, B) => {}
(lbl0, 1, B) => {(lbl0, 2, A)}
(lbl0, 2, A) => {}

Constructor & Destructor Documentation

__init__()

def miasm.analysis.data_flow.DiGraphDefUse.__init__	(		self,
			reaching_defs,
			deref_mem = False,
			apply_simp = False,
		*	args,
		**	kwargs
	)

Instantiate a DiGraph
@blocks: IR blocks

Here is the call graph for this function:

Member Function Documentation

add_data_edge()

def miasm.analysis.data_flow.DiGraphDefUse.add_data_edge	(		self,
			src,
			dst
	)

Adds an edge representing a data dependency
and sets the label accordingly

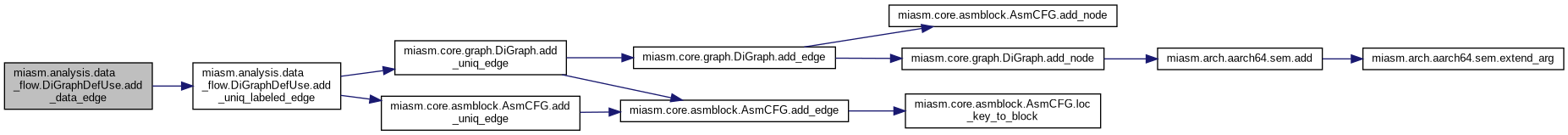

Here is the call graph for this function:

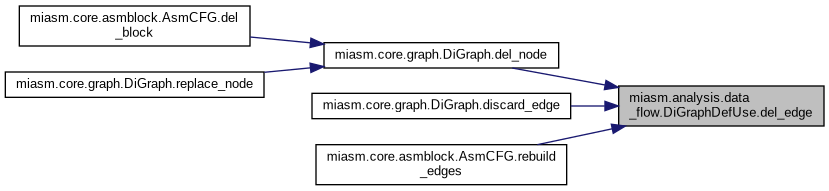

Here is the caller graph for this function:

add_uniq_labeled_edge()

def miasm.analysis.data_flow.DiGraphDefUse.add_uniq_labeled_edge	(		self,
			src,
			dst,
			edge_label
	)

Adds the edge (@src, @dst) with label @edge_label.
if edge (@src, @dst) already exists, the previous label is overridden

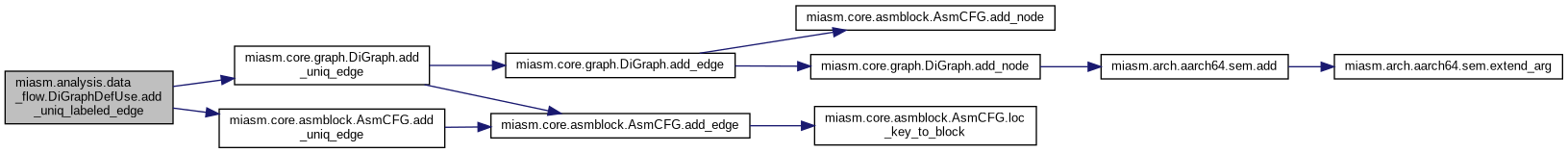

Here is the call graph for this function:

Here is the caller graph for this function:

del_edge()

def miasm.analysis.data_flow.DiGraphDefUse.del_edge	(		self,
			src,
			dst
	)

Reimplemented from miasm.core.graph.DiGraph.

Here is the caller graph for this function:

edge_attr()

def miasm.analysis.data_flow.DiGraphDefUse.edge_attr	(		self,
			src,
			dst
	)

Return a dictionary of attributes for the edge between @src and @dst
@src: the source node of the edge
@dst: the destination node of the edge

Reimplemented from miasm.core.graph.DiGraph.

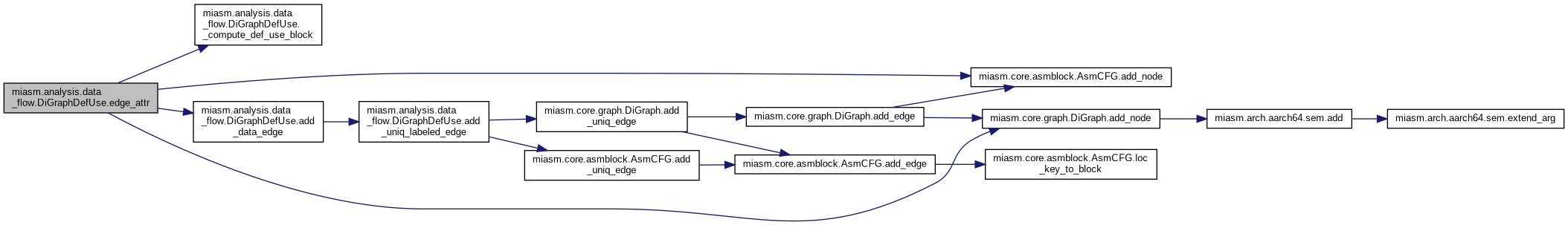

Here is the call graph for this function:

Here is the caller graph for this function:

node2lines()

def miasm.analysis.data_flow.DiGraphDefUse.node2lines	(		self,
			node
	)

Returns an iterator on cells of the dot @node.
A DotCellDescription or a list of DotCellDescription are accepted
@node: a node of the graph

Reimplemented from miasm.core.graph.DiGraph.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• /home/serpilliere/projet/test_doc_miasm/miasm/miasm/analysis/data_flow.py
