miasm.arch.mips32.jit.mipsCGen Class Reference

Inheritance diagram for miasm.arch.mips32.jit.mipsCGen:

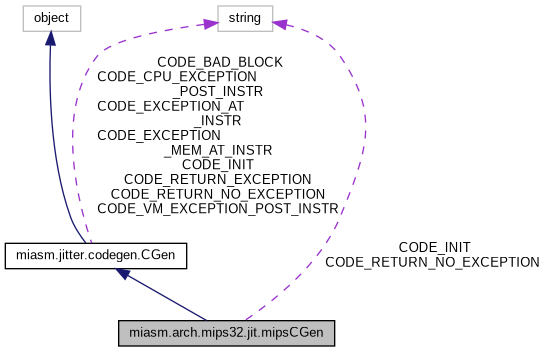

Collaboration diagram for miasm.arch.mips32.jit.mipsCGen:

Public Member Functions
def	__init__ (self, ir_arch)
def	block2assignblks (self, block)
def	gen_finalize (self, block)
Public Member Functions inherited from miasm.jitter.codegen.CGen
def	init_arch_C (self)
def	dst_to_c (self, src)
def	patch_c_id (self, expr)
def	id_to_c (self, expr)
def	add_label_index (self, dst2index, loc_key)
def	assignblk_to_irbloc (self, instr, assignblk)
def	add_local_var (self, dst_var, dst_index, expr)
def	get_mem_prefetch (self, assignblk)
def	gen_c_assignments (self, assignblk)
def	gen_check_memory_exception (self, address)
def	gen_check_cpu_exception (self, address)
def	traverse_expr_dst (self, expr, dst2index)
def	gen_assignblk_dst (self, dst)
def	gen_post_instr_checks (self, attrib)
def	gen_pre_code (self, instr_attrib)
def	gen_post_code (self, attrib, pc_value)
def	gen_goto_code (self, attrib, instr_offsets, dst)
def	gen_dst_goto (self, attrib, instr_offsets, dst2index)
def	gen_c_code (self, attrib, c_dst, c_assignmnts)
def	get_caracteristics (self, assignblk, attrib)
def	get_attributes (self, instr, irblocks, log_mn=False, log_regs=False)
def	gen_bad_block (self)
def	get_block_post_label (self, block)
def	gen_init (self, block)
def	gen_irblock (self, instr_attrib, attributes, instr_offsets, irblock)
def	gen_c (self, block, log_mn=False, log_regs=False)

Public Attributes
	delay_slot_dst
	delay_slot_set
Public Attributes inherited from miasm.jitter.codegen.CGen
	ir_arch
	PC
	translator
	id_to_c_id
	C_PC

Static Public Attributes
string	CODE_INIT
string	CODE_RETURN_NO_EXCEPTION
Static Public Attributes inherited from miasm.jitter.codegen.CGen
string	CODE_EXCEPTION_MEM_AT_INSTR
string	CODE_EXCEPTION_AT_INSTR
string	CODE_RETURN_EXCEPTION
string	CODE_RETURN_NO_EXCEPTION
string	CODE_CPU_EXCEPTION_POST_INSTR
string	CODE_VM_EXCEPTION_POST_INSTR
string	CODE_INIT
string	CODE_BAD_BLOCK

Constructor & Destructor Documentation

__init__()

def miasm.arch.mips32.jit.mipsCGen.__init__	(		self,
			ir_arch
	)

Reimplemented from miasm.jitter.codegen.CGen.

Member Function Documentation

block2assignblks()

def miasm.arch.mips32.jit.mipsCGen.block2assignblks	(		self,
			block
	)

Return the list of irblocks for a native @block
@block: AsmBlock

Reimplemented from miasm.jitter.codegen.CGen.

Here is the caller graph for this function:

gen_finalize()

def miasm.arch.mips32.jit.mipsCGen.gen_finalize	(		self,
			block
	)

Generate the C code for the final block instruction

Reimplemented from miasm.jitter.codegen.CGen.

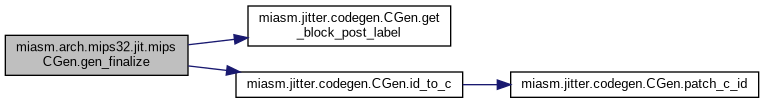

Here is the call graph for this function:

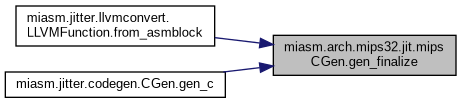

Here is the caller graph for this function:

Member Data Documentation

CODE_INIT

string miasm.arch.mips32.jit.mipsCGen.CODE_INIT

static

Initial value:

=  CGen.CODE_INIT + r"""
    unsigned int branch_dst_pc;
    unsigned int branch_dst_irdst;
    unsigned int branch_dst_set=0;
    """

CODE_RETURN_NO_EXCEPTION

string miasm.arch.mips32.jit.mipsCGen.CODE_RETURN_NO_EXCEPTION

static

Initial value:

=  r"""
    %s:
    if (branch_dst_set) {
        %s = %s;
        BlockDst->address = %s;
    } else {
        BlockDst->address = %s;
    }
    return JIT_RET_NO_EXCEPTION;
    """

delay_slot_dst

miasm.arch.mips32.jit.mipsCGen.delay_slot_dst

delay_slot_set

miasm.arch.mips32.jit.mipsCGen.delay_slot_set

---

The documentation for this class was generated from the following file:

• /home/serpilliere/projet/test_doc_miasm/miasm/miasm/arch/mips32/jit.py
