miasm.core.asmblock.disasmEngine Class Reference

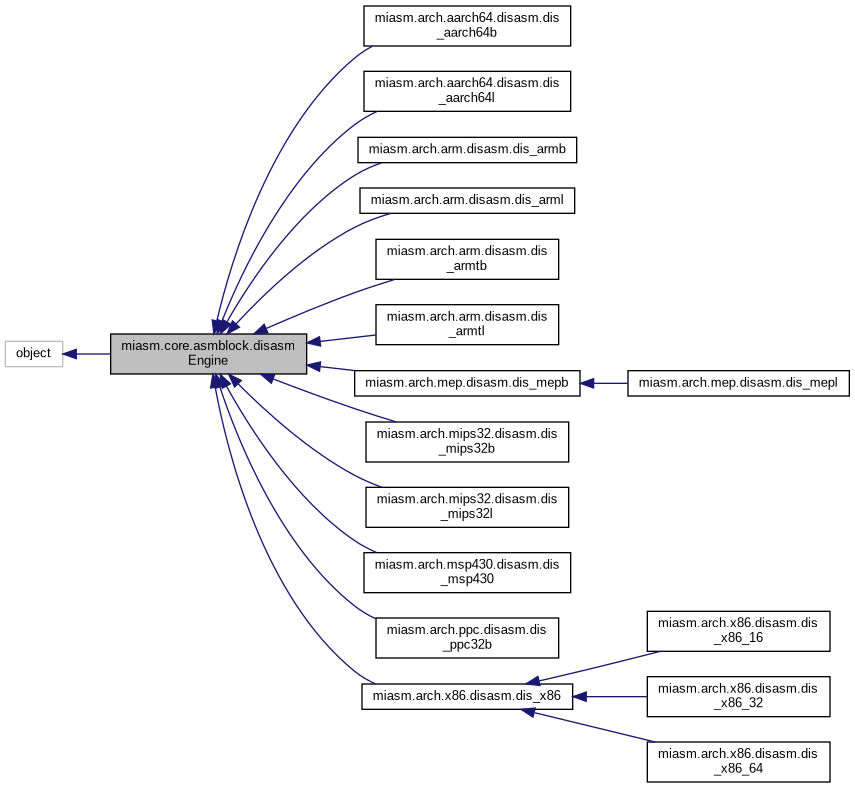

Inheritance diagram for miasm.core.asmblock.disasmEngine:

Collaboration diagram for miasm.core.asmblock.disasmEngine:

Public Member Functions
def	__init__ (self, arch, attrib, bin_stream, loc_db, **kwargs)
def	dis_block (self, offset)
def	dis_multiblock (self, offset, blocks=None, job_done=None)
def	apply_splitting (self, blocks)
def	dis_instr (self, offset)

Public Attributes
	arch
	attrib
	bin_stream
	loc_db
	dont_dis
	split_dis
	follow_call
	dontdis_retcall
	lines_wd
	blocs_wd
	dis_block_callback
	dont_dis_nulstart_bloc
	dont_dis_retcall_funcs

Detailed Description

Disassembly engine, taking care of disassembler options and mutli-block
strategy.

Engine options:

+ Object supporting membership test (offset in ..)
 - dont_dis: stop the current disassembly branch if reached
 - split_dis: force a basic block end if reached,
              with a next constraint on its successor
 - dont_dis_retcall_funcs: stop disassembly after a call to one
                           of the given functions

+ On/Off
 - follow_call: recursively disassemble CALL destinations
 - dontdis_retcall: stop on CALL return addresses
 - dont_dis_nulstart_bloc: stop if a block begin with a few \x00

+ Number
 - lines_wd: maximum block's size (in number of instruction)
 - blocs_wd: maximum number of distinct disassembled block

+ callback(mdis, cur_block, offsets_to_dis)
 - dis_block_callback: callback after each new disassembled block

Constructor & Destructor Documentation

__init__()

def miasm.core.asmblock.disasmEngine.__init__	(		self,
			arch,
			attrib,
			bin_stream,
			loc_db,
		**	kwargs
	)

Instantiate a new disassembly engine
@arch: targeted architecture
@attrib: architecture attribute
@bin_stream: bytes source
@kwargs: (optional) custom options

Member Function Documentation

apply_splitting()

def miasm.core.asmblock.disasmEngine.apply_splitting	(		self,
			blocks
	)

Consider @blocks' bto destinations and split block in @blocks if one
of these destinations jumps in the middle of this block.  In order to
work, they must be only one block in @self per loc_key in

@blocks: Asmcfg

Here is the caller graph for this function:

dis_block()

def miasm.core.asmblock.disasmEngine.dis_block	(		self,
			offset
	)

Disassemble the block at offset @offset and return the created
AsmBlock
@offset: targeted offset to disassemble

Here is the call graph for this function:

Here is the caller graph for this function:

dis_instr()

def miasm.core.asmblock.disasmEngine.dis_instr	(		self,
			offset
	)

Disassemble one instruction at offset @offset and return the
corresponding instruction instance
@offset: targeted offset to disassemble

Here is the call graph for this function:

dis_multiblock()

def miasm.core.asmblock.disasmEngine.dis_multiblock	(		self,
			offset,
			blocks = None,
			job_done = None
	)

Disassemble every block reachable from @offset regarding
specific disasmEngine conditions
Return an AsmCFG instance containing disassembled blocks
@offset: starting offset
@blocks: (optional) AsmCFG instance of already disassembled blocks to
        merge with

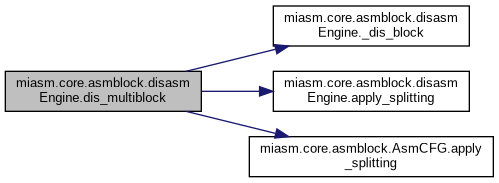

Here is the call graph for this function:

Member Data Documentation

arch

miasm.core.asmblock.disasmEngine.arch

attrib

miasm.core.asmblock.disasmEngine.attrib

bin_stream

miasm.core.asmblock.disasmEngine.bin_stream

blocs_wd

miasm.core.asmblock.disasmEngine.blocs_wd

dis_block_callback

miasm.core.asmblock.disasmEngine.dis_block_callback

dont_dis

miasm.core.asmblock.disasmEngine.dont_dis

dont_dis_nulstart_bloc

miasm.core.asmblock.disasmEngine.dont_dis_nulstart_bloc

dont_dis_retcall_funcs

miasm.core.asmblock.disasmEngine.dont_dis_retcall_funcs

dontdis_retcall

miasm.core.asmblock.disasmEngine.dontdis_retcall

follow_call

miasm.core.asmblock.disasmEngine.follow_call

lines_wd

miasm.core.asmblock.disasmEngine.lines_wd

loc_db

miasm.core.asmblock.disasmEngine.loc_db

split_dis

miasm.core.asmblock.disasmEngine.split_dis

---

The documentation for this class was generated from the following file:

• /home/serpilliere/projet/test_doc_miasm/miasm/miasm/core/asmblock.py
