miasm.core.graph.MatchGraph Class Reference

Inheritance diagram for miasm.core.graph.MatchGraph:

Collaboration diagram for miasm.core.graph.MatchGraph:

Public Member Functions
def	__init__ (self, *args, **kwargs)
def	__rshift__ (self, joker)
def	__add__ (self, graph)
def	match (self, graph)
Public Member Functions inherited from miasm.core.graph.DiGraph
def	__init__ (self)
def	__repr__ (self)
def	nodes (self)
def	edges (self)
def	merge (self, graph)
def	copy (self)
def	__eq__ (self, graph)
def	__ne__ (self, other)
def	add_node (self, node)
def	del_node (self, node)
def	add_edge (self, src, dst)
def	add_uniq_edge (self, src, dst)
def	del_edge (self, src, dst)
def	discard_edge (self, src, dst)
def	predecessors_iter (self, node)
def	predecessors (self, node)
def	successors_iter (self, node)
def	successors (self, node)
def	leaves_iter (self)
def	leaves (self)
def	heads_iter (self)
def	heads (self)
def	find_path (self, src, dst, cycles_count=0, done=None)
def	find_path_from_src (self, src, dst, cycles_count=0, done=None)
def	nodeid (self, node)
def	node2lines (self, node)
def	node_attr (self, node)
def	edge_attr (self, src, dst)
def	dot (self)
def	predecessors_stop_node_iter (self, node, head)
def	reachable_sons (self, head)
def	reachable_parents (self, leaf)
def	reachable_parents_stop_node (self, leaf, head)
def	compute_dominators (self, head)
def	compute_postdominators (self, leaf)
def	compute_dominator_tree (self, head)
def	walk_dominators (self, node, dominators)
def	walk_postdominators (self, node, postdominators)
def	compute_immediate_dominators (self, head)
def	compute_immediate_postdominators (self, tail)
def	compute_dominance_frontier (self, head)
def	walk_breadth_first_forward (self, head)
def	walk_depth_first_forward (self, head)
def	walk_breadth_first_backward (self, head)
def	walk_depth_first_backward (self, head)
def	has_loop (self)
def	compute_natural_loops (self, head)
def	compute_back_edges (self, head)
def	compute_strongly_connected_components (self)
def	compute_weakly_connected_components (self)
def	replace_node (self, node, new_node)

Additional Inherited Members
Static Public Attributes inherited from miasm.core.graph.DiGraph
	DotCellDescription

Detailed Description

MatchGraph intends to be the counterpart of match_expr, but for DiGraph

This class provides API to match a given DiGraph pattern, with addidionnal
restrictions.
The implemented algorithm is a naive approach.

The recommended way to instantiate a MatchGraph is the use of
MatchGraphJoker.

Constructor & Destructor Documentation

__init__()

def miasm.core.graph.MatchGraph.__init__	(		self,
		*	args,
		**	kwargs
	)

Member Function Documentation

__add__()

def miasm.core.graph.MatchGraph.__add__	(		self,
			graph
	)

Construction helper, merging @graph with self
@graph: MatchGraph instance

Reimplemented from miasm.core.graph.DiGraph.

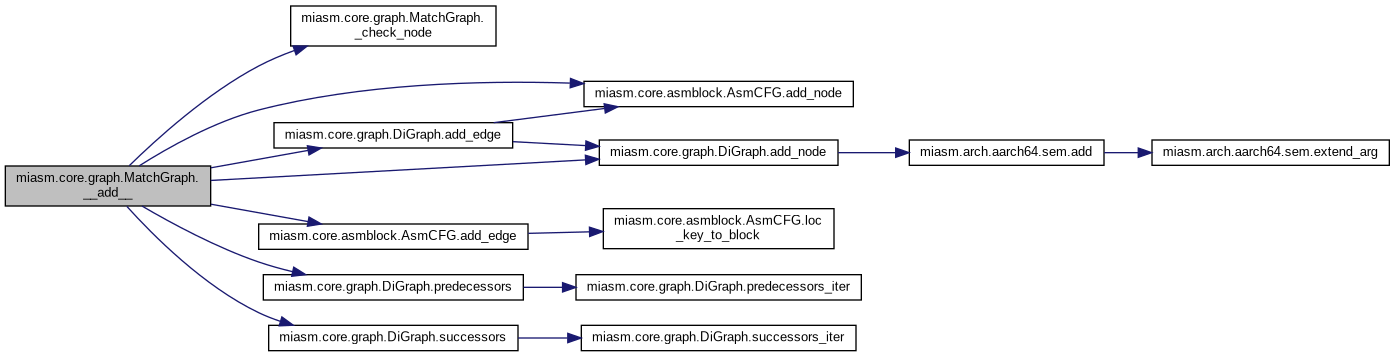

Here is the call graph for this function:

Here is the caller graph for this function:

__rshift__()

def miasm.core.graph.MatchGraph.__rshift__	(		self,
			joker
	)

Construction helper, adding @joker to the current graph as a son of
_last_node
@joker: MatchGraphJoker instance

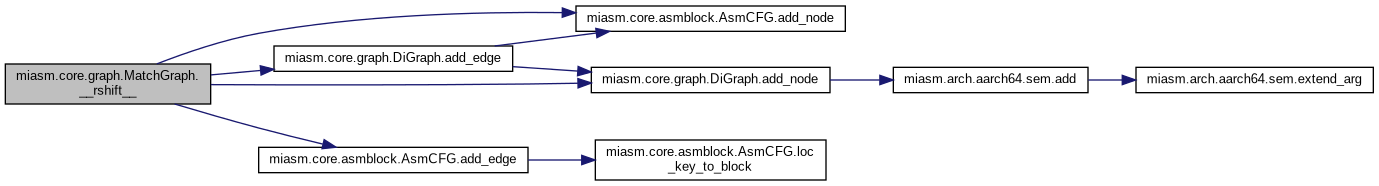

Here is the call graph for this function:

match()

def miasm.core.graph.MatchGraph.match	(		self,
			graph
	)

Naive subgraph matching between graph and self.
Iterator on matching solution, as dictionary MatchGraphJoker -> @graph
@graph: DiGraph instance
In order to obtained correct and complete results, @graph must be
connected.

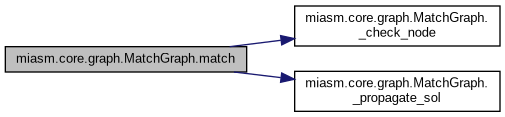

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• /home/serpilliere/projet/test_doc_miasm/miasm/miasm/core/graph.py
