miasm.core.types.MemStruct Class Reference

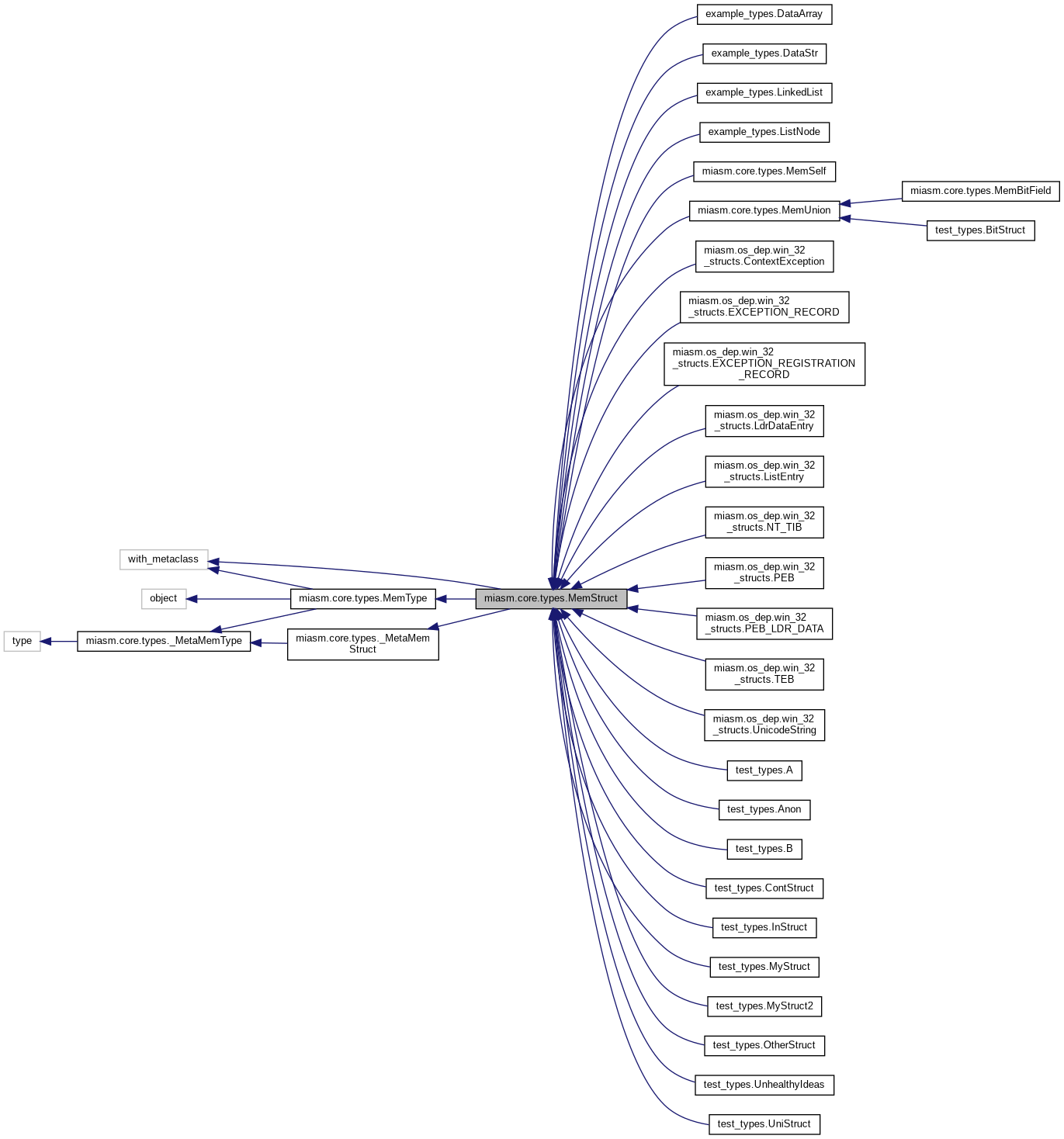

Inheritance diagram for miasm.core.types.MemStruct:

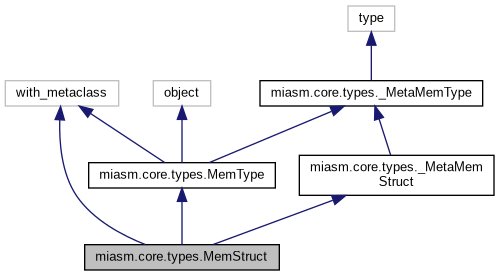

Collaboration diagram for miasm.core.types.MemStruct:

Public Member Functions
def	get_addr (self, field_name=None)
def	get_offset (cls, field_name)
def	get_field (self, name)
def	set_field (self, name, val)
def	cast_field (self, field, other_type)
def	gen_fields (cls, fields=None)
def	__repr__ (self)
Public Member Functions inherited from miasm.core.types._MetaMemStruct
def	__init__ (cls, name, bases, dct)
Public Member Functions inherited from miasm.core.types.MemType
def	__init__ (self, vm, addr=None, type_=None)
def	alloc (cls, vm, size)
def	set_allocator (cls, alloc_func)
def	get_type (cls)
def	sizeof (cls)
def	get_size (self)
def	memset (self, byte=b'\x00')
def	cast (self, other_type)
def	cast_field (self, field, other_type, *type_args, **type_kwargs)
def	raw (self)
def	__len__ (self)
def	__str__ (self)
def	__bytes__ (self)
def	__eq__ (self, other)
def	__ne__ (self, other)

Static Public Attributes
	fields = None
Static Public Attributes inherited from miasm.core.types.MemType
	allocator = None

Additional Inherited Members
Public Attributes inherited from miasm.core.types._MetaMemStruct
	fields

Detailed Description

Base class to easily implement VmMngr backed C-like structures in miasm.
Represents a structure in virtual memory.

The mechanism is the following:
    - set a "fields" class field to be a list of
      (<field_name (str)>, <Type_subclass_instance>)
    - instances of this class will have properties to interact with these
      fields.

Example:
    class MyStruct(MemStruct):
        fields = [
            # Scalar field: just struct.pack field with one value
            ("num", Num("I")),
            ("flags", Num("B")),
            # Ptr fields contain two fields: "val", for the numerical value,
            # and "deref" to get the pointed object
            ("other", Ptr("I", OtherStruct)),
            # Ptr to a variable length String
            ("s", Ptr("I", Str())),
            ("i", Ptr("I", Num("I"))),
        ]

    mstruct = MyStruct(vm, addr)

    # Field assignment modifies virtual memory
    mstruct.num = 3
    assert mstruct.num == 3
    memval = struct.unpack("I", vm.get_mem(mstruct.get_addr(),
                                                  4))[0]
    assert memval == mstruct.num

    # Memset sets the whole structure
    mstruct.memset()
    assert mstruct.num == 0
    mstruct.memset('\x11')
    assert mstruct.num == 0x11111111

    other = OtherStruct(vm, addr2)
    mstruct.other = other.get_addr()
    assert mstruct.other.val == other.get_addr()
    assert mstruct.other.deref == other
    assert mstruct.other.deref.foo == 0x1234

Note that:
    MyStruct = Struct("MyStruct", <same fields>).lval
is equivalent to the previous MyStruct declaration.

See the various Type-s doc for more information. See MemStruct.gen_fields
doc for more information on how to handle recursive types and cyclic
dependencies.

Member Function Documentation

__repr__()

def miasm.core.types.MemStruct.__repr__

(

self

)

Reimplemented from miasm.core.types.MemType.

Reimplemented in miasm.core.types.MemSelf.

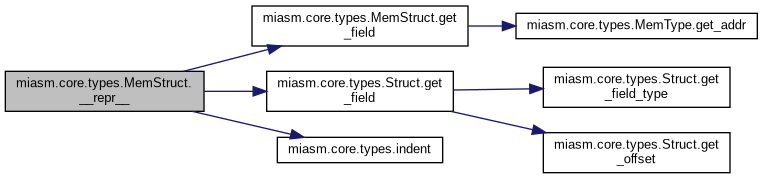

Here is the call graph for this function:

cast_field()

def miasm.core.types.MemStruct.cast_field	(		self,
			field,
			other_type
	)

In this implementation, @field is a field name

Here is the call graph for this function:

gen_fields()

def miasm.core.types.MemStruct.gen_fields	(		cls,
			fields = None
	)

Generate the fields of this class (so that they can be accessed with
self.<field_name>) from a @fields list, as described in the class doc.

Useful in case of a type cyclic dependency. For example, the following
is not possible in python:

    class A(MemStruct):
        fields = [("b", Ptr("I", B))]

    class B(MemStruct):
        fields = [("a", Ptr("I", A))]

With gen_fields, the following is the legal equivalent:

    class A(MemStruct):
        pass

    class B(MemStruct):
        fields = [("a", Ptr("I", A))]

    A.gen_fields([("b", Ptr("I", B))])

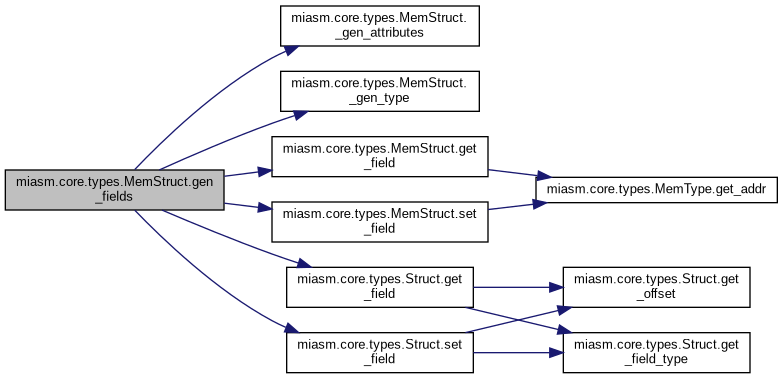

Here is the call graph for this function:

get_addr()

def miasm.core.types.MemStruct.get_addr	(		self,
			field_name = None
	)

@field_name: (str, optional) the name of the field to get the
    address of

Reimplemented from miasm.core.types.MemType.

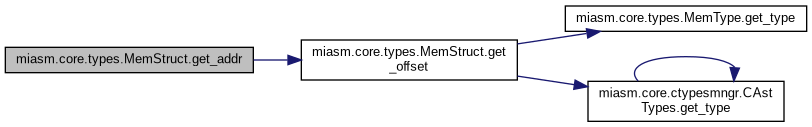

Here is the call graph for this function:

get_field()

def miasm.core.types.MemStruct.get_field	(		self,
			name
	)

Get a field value by name.

useless most of the time since fields are accessible via self.<name>.

Here is the call graph for this function:

Here is the caller graph for this function:

get_offset()

def miasm.core.types.MemStruct.get_offset	(		cls,
			field_name
	)

Shorthand for self.get_type().get_offset(field_name).

Here is the call graph for this function:

Here is the caller graph for this function:

set_field()

def miasm.core.types.MemStruct.set_field	(		self,
			name,
			val
	)

Set a field value by name. @val is the python value corresponding to
this field type.

useless most of the time since fields are accessible via self.<name>.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

fields

miasm.core.types.MemStruct.fields = None

static

---

The documentation for this class was generated from the following file:

• /home/serpilliere/projet/test_doc_miasm/miasm/miasm/core/types.py
