miasm.ir.ir.IRCFG Class Reference

Inheritance diagram for miasm.ir.ir.IRCFG:

Collaboration diagram for miasm.ir.ir.IRCFG:

Public Member Functions
def	__init__ (self, irdst, loc_db, blocks=None, *args, **kwargs)
def	IRDst (self)
def	blocks (self)
def	add_irblock (self, irblock)
def	node2lines (self, node)
def	edge_attr (self, src, dst)
def	node_attr (self, node)
def	dot (self, offset=False)
def	get_loc_key (self, addr)
def	get_or_create_loc_key (self, addr)
def	get_block (self, addr)
def	getby_offset (self, offset)
def	simplify (self, simplifier)
def	dst_trackback (self, irb)
Public Member Functions inherited from miasm.core.graph.DiGraph
def	__init__ (self)
def	__repr__ (self)
def	nodes (self)
def	edges (self)
def	merge (self, graph)
def	__add__ (self, graph)
def	copy (self)
def	__eq__ (self, graph)
def	__ne__ (self, other)
def	add_node (self, node)
def	del_node (self, node)
def	add_edge (self, src, dst)
def	add_uniq_edge (self, src, dst)
def	del_edge (self, src, dst)
def	discard_edge (self, src, dst)
def	predecessors_iter (self, node)
def	predecessors (self, node)
def	successors_iter (self, node)
def	successors (self, node)
def	leaves_iter (self)
def	leaves (self)
def	heads_iter (self)
def	heads (self)
def	find_path (self, src, dst, cycles_count=0, done=None)
def	find_path_from_src (self, src, dst, cycles_count=0, done=None)
def	nodeid (self, node)
def	dot (self)
def	predecessors_stop_node_iter (self, node, head)
def	reachable_sons (self, head)
def	reachable_parents (self, leaf)
def	reachable_parents_stop_node (self, leaf, head)
def	compute_dominators (self, head)
def	compute_postdominators (self, leaf)
def	compute_dominator_tree (self, head)
def	walk_dominators (self, node, dominators)
def	walk_postdominators (self, node, postdominators)
def	compute_immediate_dominators (self, head)
def	compute_immediate_postdominators (self, tail)
def	compute_dominance_frontier (self, head)
def	walk_breadth_first_forward (self, head)
def	walk_depth_first_forward (self, head)
def	walk_breadth_first_backward (self, head)
def	walk_depth_first_backward (self, head)
def	has_loop (self)
def	compute_natural_loops (self, head)
def	compute_back_edges (self, head)
def	compute_strongly_connected_components (self)
def	compute_weakly_connected_components (self)
def	replace_node (self, node, new_node)

Public Attributes
	loc_db

Additional Inherited Members
Static Public Attributes inherited from miasm.core.graph.DiGraph
	DotCellDescription

Detailed Description

DiGraph for IR instances

Constructor & Destructor Documentation

__init__()

def miasm.ir.ir.IRCFG.__init__	(		self,
			irdst,
			loc_db,
			blocks = None,
		*	args,
		**	kwargs
	)

Instantiate a IRCFG
@loc_db: LocationDB instance
@blocks: IR blocks

Member Function Documentation

add_irblock()

def miasm.ir.ir.IRCFG.add_irblock	(		self,
			irblock
	)

Add the @irblock to the current IRCFG
@irblock: IRBlock instance

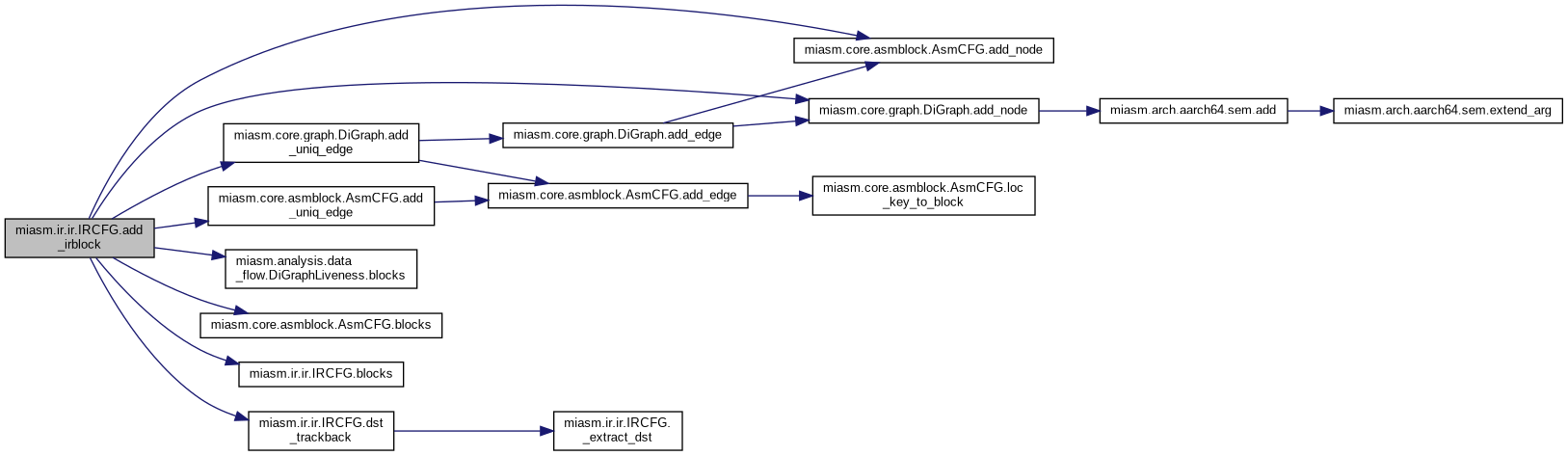

Here is the call graph for this function:

blocks()

def miasm.ir.ir.IRCFG.blocks

(

self

)

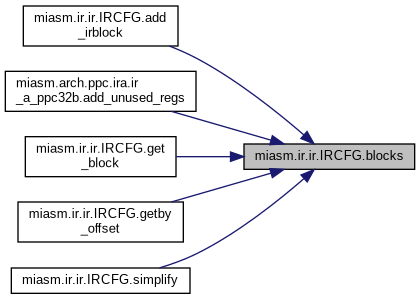

Here is the caller graph for this function:

dot()

def miasm.ir.ir.IRCFG.dot	(		self,
			offset = False
	)

@offset: (optional) if set, add the corresponding line number in each
node

dst_trackback()

def miasm.ir.ir.IRCFG.dst_trackback	(		self,
			irb
	)

Naive backtracking of IRDst
@irb: irbloc instance

Here is the call graph for this function:

Here is the caller graph for this function:

edge_attr()

def miasm.ir.ir.IRCFG.edge_attr	(		self,
			src,
			dst
	)

Return a dictionary of attributes for the edge between @src and @dst
@src: the source node of the edge
@dst: the destination node of the edge

Reimplemented from miasm.core.graph.DiGraph.

get_block()

def miasm.ir.ir.IRCFG.get_block	(		self,
			addr
	)

Returns the irbloc associated to an ExprId/ExprInt/loc_key/int
@addr: an ExprId/ExprInt/loc_key/int

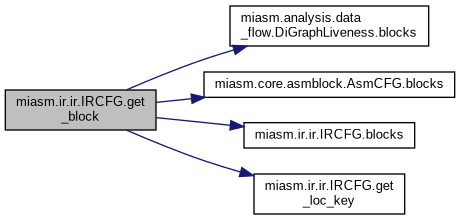

Here is the call graph for this function:

get_loc_key()

def miasm.ir.ir.IRCFG.get_loc_key	(		self,
			addr
	)

Transforms an ExprId/ExprInt/loc_key/int into a loc_key
@addr: an ExprId/ExprInt/loc_key/int

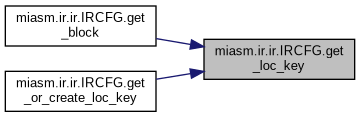

Here is the caller graph for this function:

get_or_create_loc_key()

def miasm.ir.ir.IRCFG.get_or_create_loc_key	(		self,
			addr
	)

Transforms an ExprId/ExprInt/loc_key/int into a loc_key
If the offset @addr is not in the LocationDB, create it
@addr: an ExprId/ExprInt/loc_key/int

Here is the call graph for this function:

getby_offset()

def miasm.ir.ir.IRCFG.getby_offset	(		self,
			offset
	)

Return the set of loc_keys of irblocks containing @offset
@offset: address

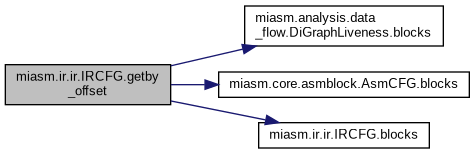

Here is the call graph for this function:

IRDst()

def miasm.ir.ir.IRCFG.IRDst

(

self

)

node2lines()

def miasm.ir.ir.IRCFG.node2lines	(		self,
			node
	)

Returns an iterator on cells of the dot @node.
A DotCellDescription or a list of DotCellDescription are accepted
@node: a node of the graph

Reimplemented from miasm.core.graph.DiGraph.

node_attr()

def miasm.ir.ir.IRCFG.node_attr	(		self,
			node
	)

Returns a dictionary of the @node's attributes
@node: a node of the graph

Reimplemented from miasm.core.graph.DiGraph.

simplify()

def miasm.ir.ir.IRCFG.simplify	(		self,
			simplifier
	)

Simplify expressions in each irblocks
@simplifier: ExpressionSimplifier instance

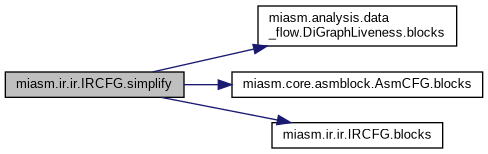

Here is the call graph for this function:

Member Data Documentation

loc_db

miasm.ir.ir.IRCFG.loc_db

---

The documentation for this class was generated from the following file:

• /home/serpilliere/projet/test_doc_miasm/miasm/miasm/ir/ir.py
