miasm.jitter.llvmconvert.LLVMFunction Class Reference

Inheritance diagram for miasm.jitter.llvmconvert.LLVMFunction:

Collaboration diagram for miasm.jitter.llvmconvert.LLVMFunction:

Public Member Functions
def	__init__ (self, llvm_context, name="fc", new_module=True)
def	new_branch_name (self)
def	append_basic_block (self, label, overwrite=True)
def	CreateEntryBlockAlloca (self, var_type, default_value=None)
def	get_ptr_by_expr (self, expr)
def	update_cache (self, name, value)
def	set_ret (self, var)
def	get_basic_block_by_loc_key (self, loc_key)
def	global_constant (self, name, value)
def	make_bytearray (self, buf)
def	printf (self, format, *args)
def	assign (self, src, dst)
def	init_fc (self)
def	add_ir (self, expr)
def	check_memory_exception (self, offset, restricted_exception=False)
def	check_cpu_exception (self, offset, restricted_exception=False)
def	gen_pre_code (self, instr_attrib)
def	gen_post_code (self, attributes, pc_value)
def	gen_post_instr_checks (self, attrib, next_instr)
def	expr2cases (self, expr)
def	gen_jump2dst (self, attrib, instr_offsets, dst)
def	gen_irblock (self, instr_attrib, attributes, instr_offsets, irblock)
def	gen_bad_block (self, asmblock)
def	gen_finalize (self, asmblock, codegen)
def	from_asmblock (self, asmblock)
def	__str__ (self)
def	dot (self)
def	as_llvm_mod (self)
def	verify (self)
def	get_bytecode (self)
def	get_assembly (self)
def	optimise (self)
def	__call__ (self, *args)
def	get_function_pointer (self)

Public Attributes
	llvm_context
	mod
	my_args
	ret_type
	builder
	entry_bbl
	branch_counter
	name
	local_vars
	local_vars_pointers
	expr_cache
	main_stream
	name2bbl
	fc

Static Public Attributes
bool	log_mn = False
bool	log_regs = True
dictionary	op_translate
	Basics. More...
dictionary	op_translate_with_size = {}
	Add the size as first argument. More...
dictionary	op_translate_with_suffix_size
	Add the size as suffix. More...

Detailed Description

Represent a LLVM function

Implementation note:
A new module is created each time to avoid cumulative lag (if @new_module)

Constructor & Destructor Documentation

__init__()

def miasm.jitter.llvmconvert.LLVMFunction.__init__	(		self,
			llvm_context,
			name = "fc",
			new_module = True
	)

Member Function Documentation

__call__()

def miasm.jitter.llvmconvert.LLVMFunction.__call__	(		self,
		*	args
	)

__str__()

def miasm.jitter.llvmconvert.LLVMFunction.__str__

(

self

)

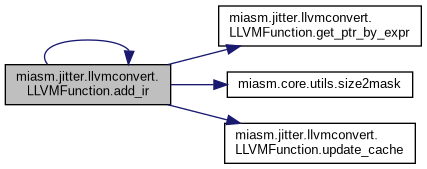

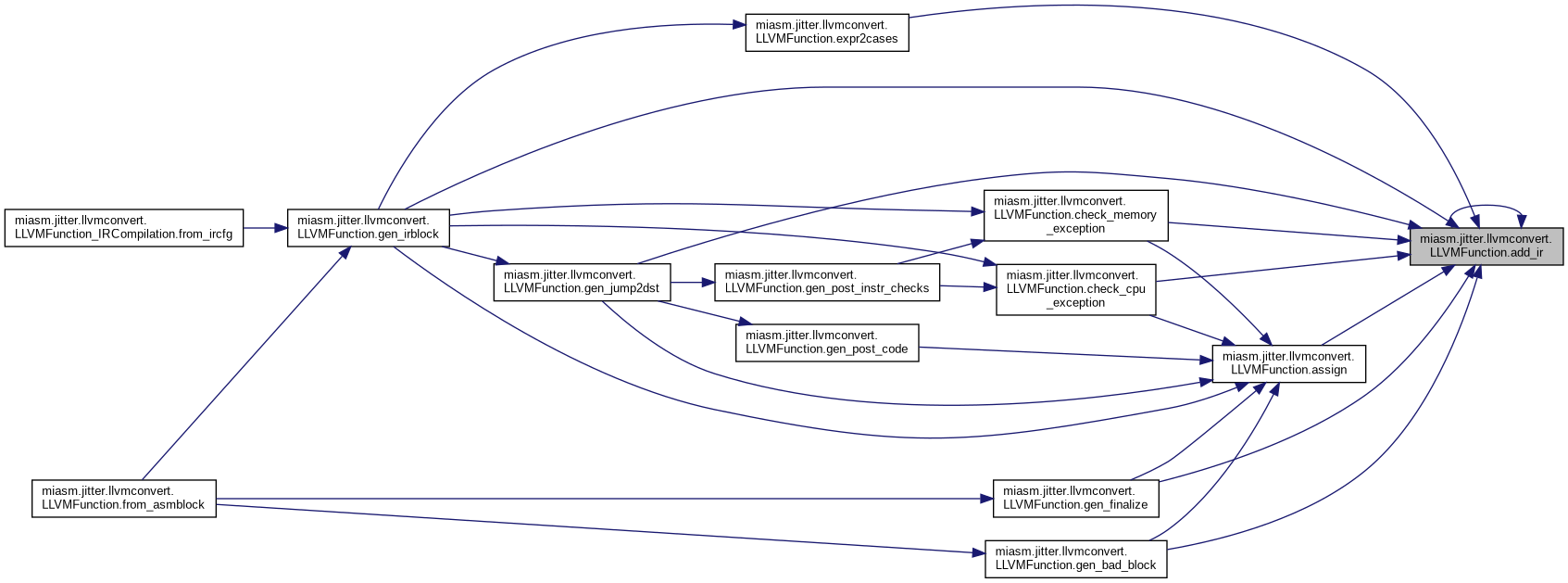

add_ir()

def miasm.jitter.llvmconvert.LLVMFunction.add_ir	(		self,
			expr
	)

Here is the call graph for this function:

Here is the caller graph for this function:

append_basic_block()

def miasm.jitter.llvmconvert.LLVMFunction.append_basic_block	(		self,
			label,
			overwrite = True
	)

Add a new basic block to the current function.
@label: str or asmlabel
@overwrite: if False, do nothing if a bbl with the same name already exists
Return the corresponding LLVM Basic Block

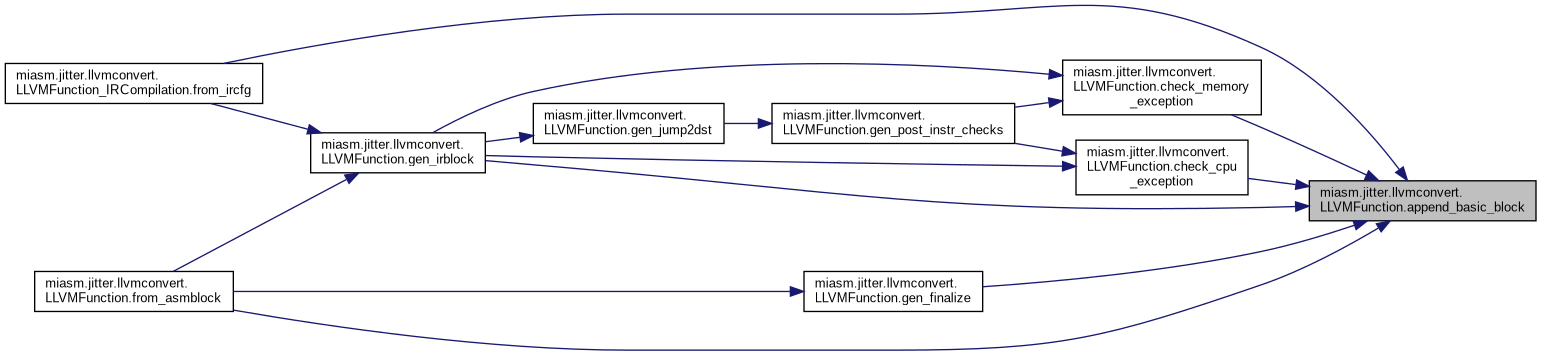

Here is the caller graph for this function:

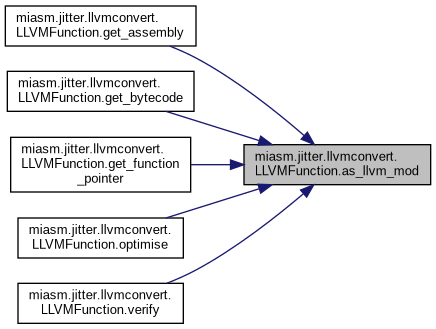

as_llvm_mod()

def miasm.jitter.llvmconvert.LLVMFunction.as_llvm_mod

(

self

)

Return a ModuleRef standing for the current function

Here is the caller graph for this function:

assign()

def miasm.jitter.llvmconvert.LLVMFunction.assign	(		self,
			src,
			dst
	)

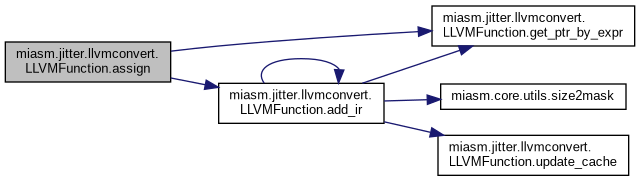

Here is the call graph for this function:

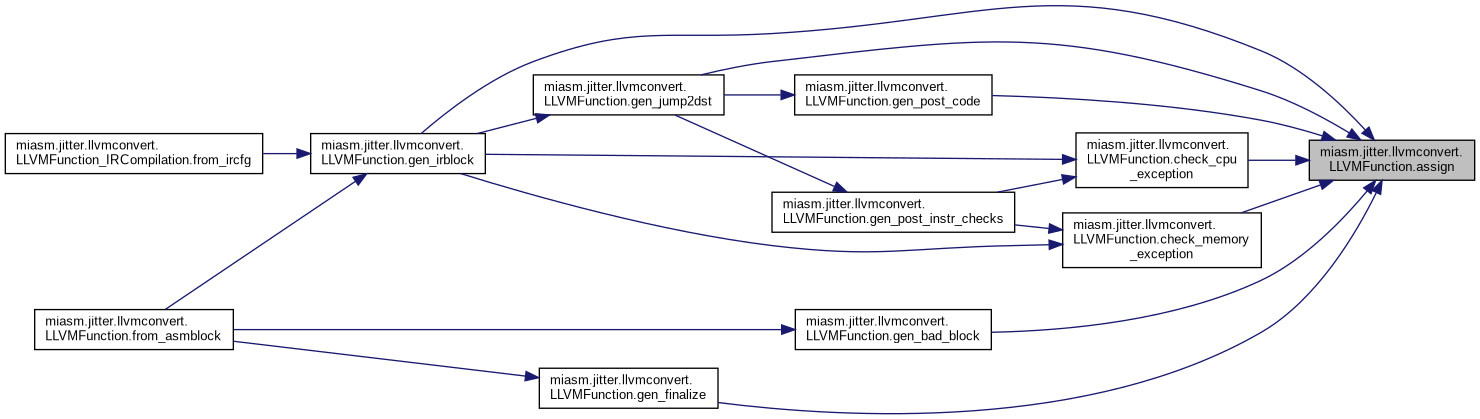

Here is the caller graph for this function:

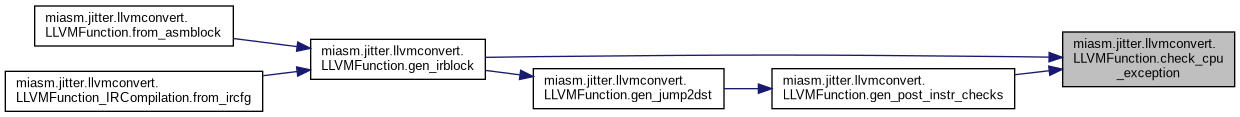

check_cpu_exception()

def miasm.jitter.llvmconvert.LLVMFunction.check_cpu_exception	(		self,
			offset,
			restricted_exception = False
	)

Add a check for CPU errors.
@offset: offset of the current exception (int or Instruction)
If restricted_exception, check only for exception which do not
require a pc update

Here is the call graph for this function:

Here is the caller graph for this function:

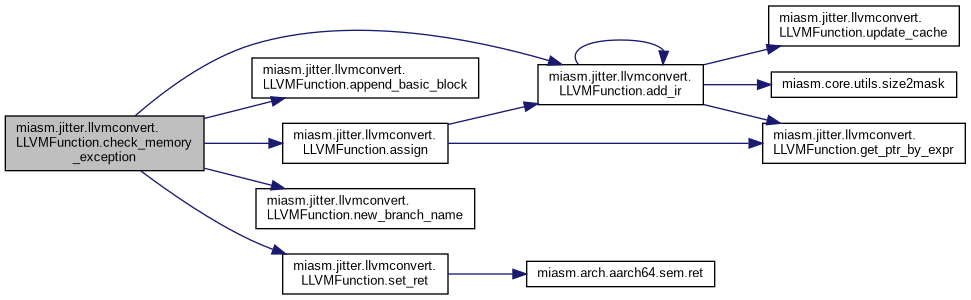

check_memory_exception()

def miasm.jitter.llvmconvert.LLVMFunction.check_memory_exception	(		self,
			offset,
			restricted_exception = False
	)

Add a check for memory errors.
@offset: offset of the current exception (int or Instruction)
If restricted_exception, check only for exception which do not
require a pc update, and do not consider automod exception

Here is the call graph for this function:

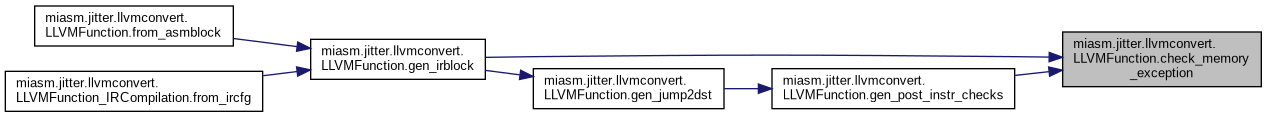

Here is the caller graph for this function:

CreateEntryBlockAlloca()

def miasm.jitter.llvmconvert.LLVMFunction.CreateEntryBlockAlloca	(		self,
			var_type,
			default_value = None
	)

Create an alloca instruction at the beginning of the current fc
@default_value: if set, store the default_value just after the allocation

Here is the caller graph for this function:

dot()

def miasm.jitter.llvmconvert.LLVMFunction.dot

(

self

)

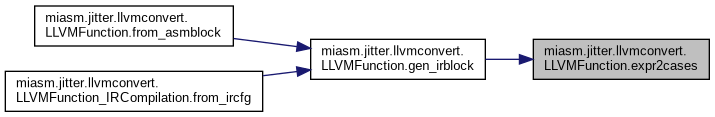

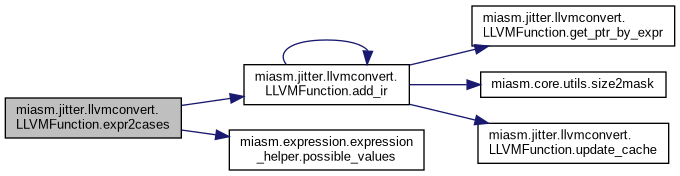

expr2cases()

def miasm.jitter.llvmconvert.LLVMFunction.expr2cases	(		self,
			expr
	)

Evaluate @expr and return:
- switch value -> dst
- evaluation of the switch value (if any)

Here is the call graph for this function:

Here is the caller graph for this function:

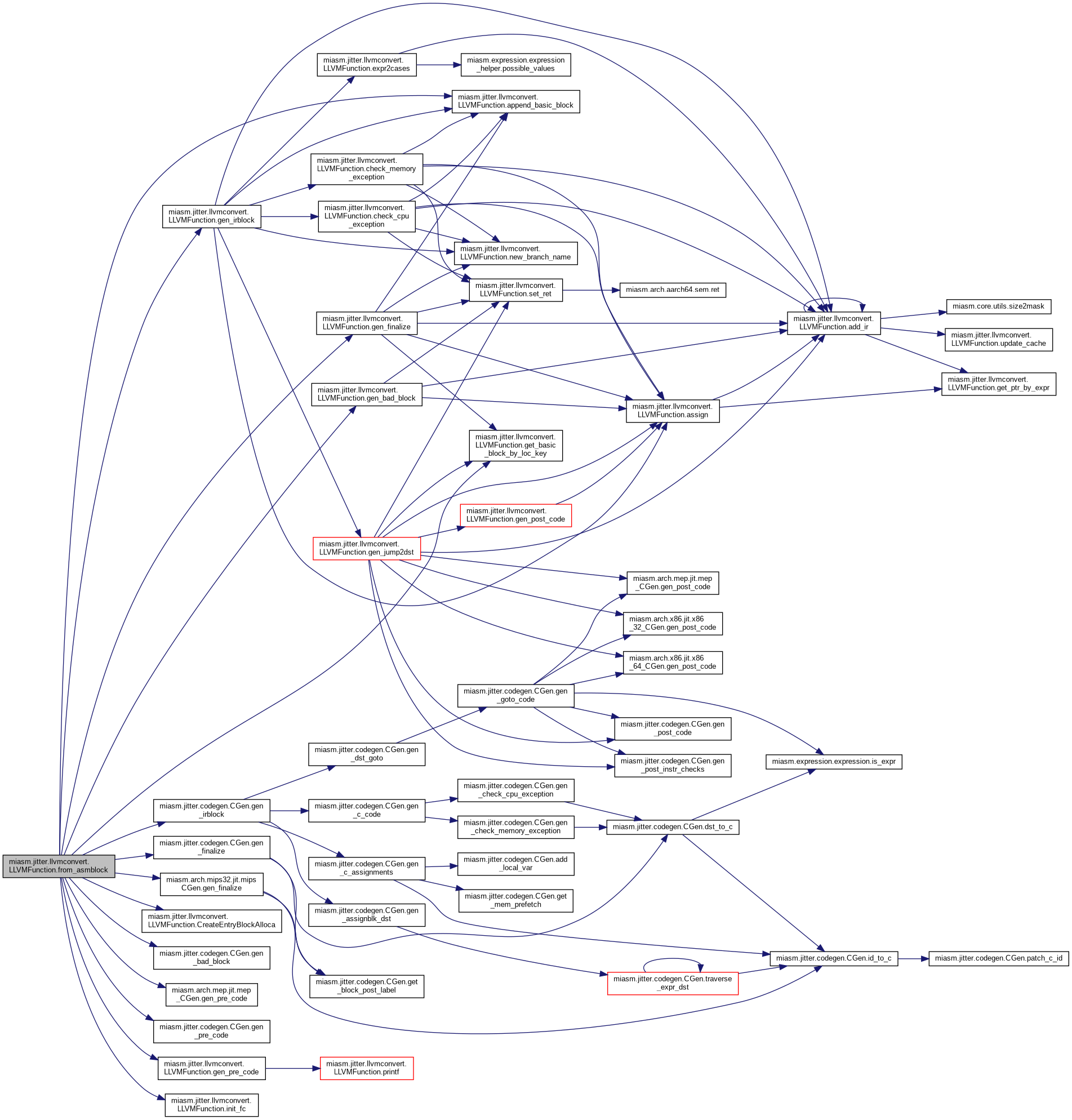

from_asmblock()

def miasm.jitter.llvmconvert.LLVMFunction.from_asmblock	(		self,
			asmblock
	)

Build the function from an asmblock (asm_block instance).
Prototype : f(i8* jitcpu, i8* vmcpu, i8* vmmngr, i8* status)

Here is the call graph for this function:

gen_bad_block()

def miasm.jitter.llvmconvert.LLVMFunction.gen_bad_block	(		self,
			asmblock
	)

Translate an asm_bad_block into a CPU exception

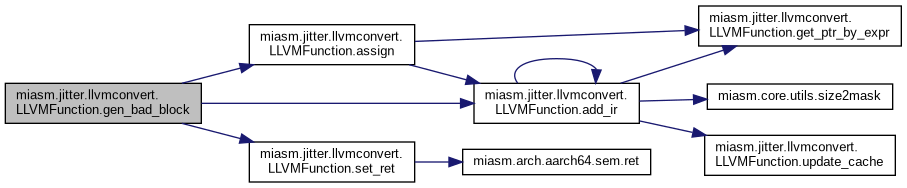

Here is the call graph for this function:

Here is the caller graph for this function:

gen_finalize()

def miasm.jitter.llvmconvert.LLVMFunction.gen_finalize	(		self,
			asmblock,
			codegen
	)

In case of delayslot, generate a dummy BBL which return on the computed
IRDst or on next_label

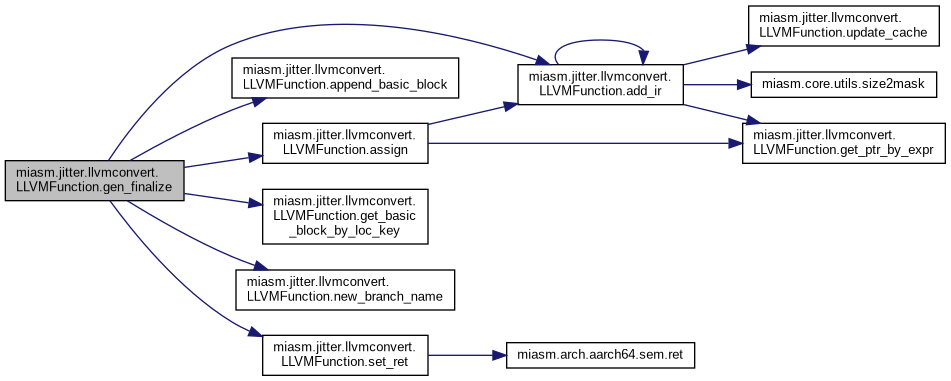

Here is the call graph for this function:

Here is the caller graph for this function:

gen_irblock()

def miasm.jitter.llvmconvert.LLVMFunction.gen_irblock	(		self,
			instr_attrib,
			attributes,
			instr_offsets,
			irblock
	)

Generate the code for an @irblock
@instr_attrib: an Attributes instance or the instruction to translate
@attributes: list of Attributes corresponding to irblock assignments
@instr_offsets: offset of all asmblock's instructions
@irblock: an irblock instance

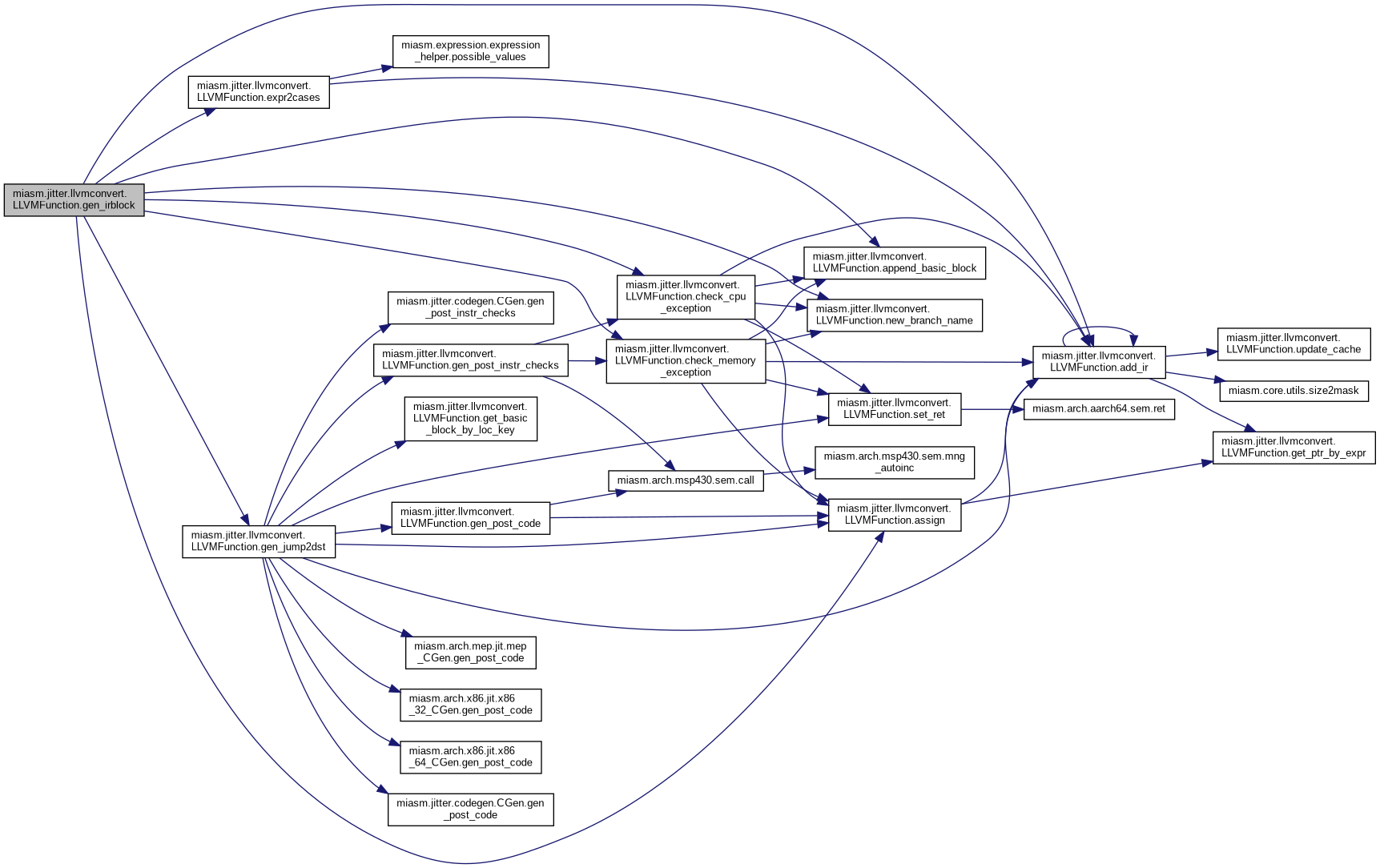

Here is the call graph for this function:

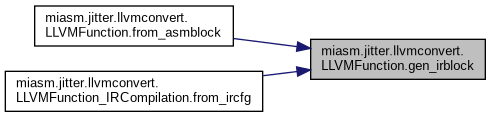

Here is the caller graph for this function:

gen_jump2dst()

def miasm.jitter.llvmconvert.LLVMFunction.gen_jump2dst	(		self,
			attrib,
			instr_offsets,
			dst
	)

Generate the code for a jump to @dst with final check for error

Several cases have to be considered:
 - jump to an offset out of the current ASM BBL (JMP 0x11223344)
 - jump to an offset inside the current ASM BBL (Go to next instruction)
 - jump to an offset back in the current ASM BBL (For max_exec jit
   option on self loops)
 - jump to a generated IR label, which must be jitted in this same
   function (REP MOVSB)
 - jump to a computed offset (CALL @32[0x11223344])

Reimplemented in miasm.jitter.llvmconvert.LLVMFunction_IRCompilation.

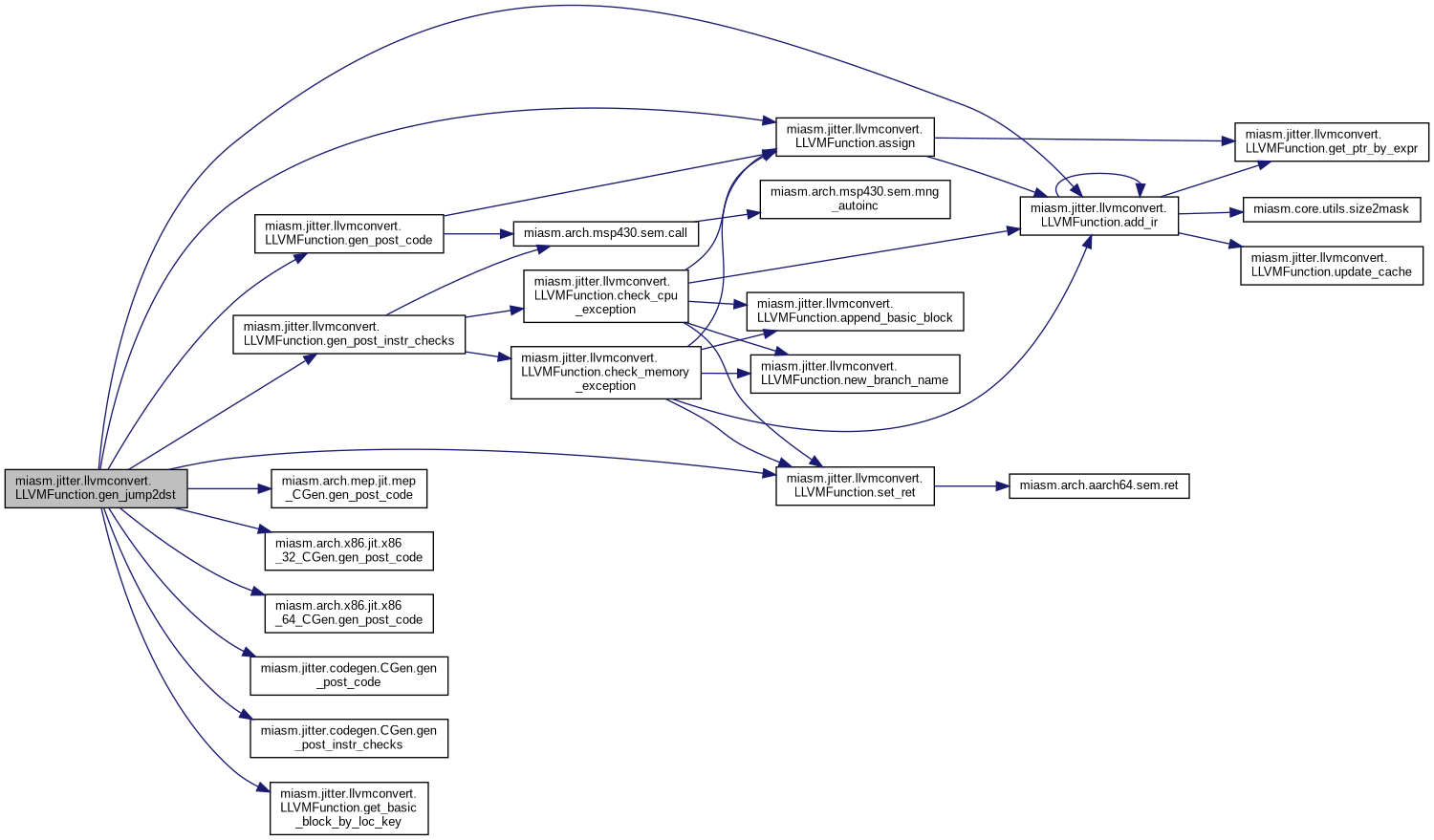

Here is the call graph for this function:

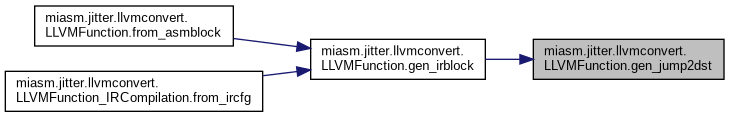

Here is the caller graph for this function:

gen_post_code()

def miasm.jitter.llvmconvert.LLVMFunction.gen_post_code	(		self,
			attributes,
			pc_value
	)

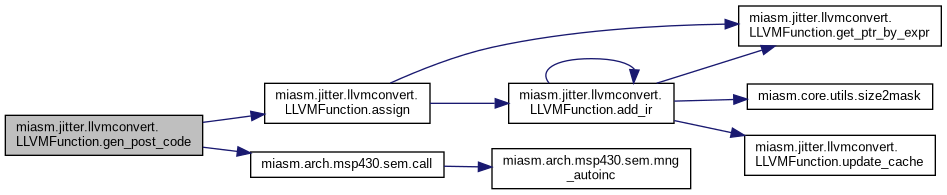

Here is the call graph for this function:

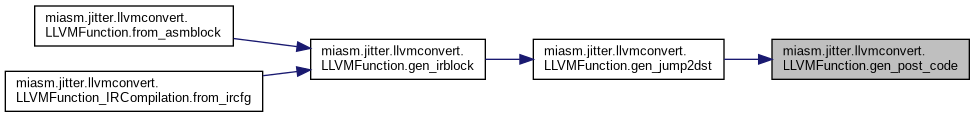

Here is the caller graph for this function:

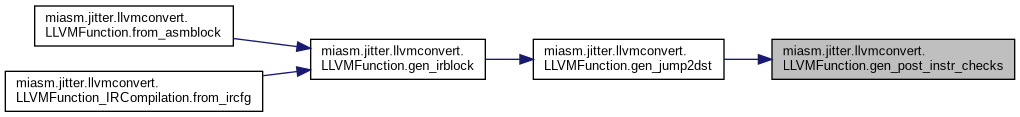

gen_post_instr_checks()

def miasm.jitter.llvmconvert.LLVMFunction.gen_post_instr_checks	(		self,
			attrib,
			next_instr
	)

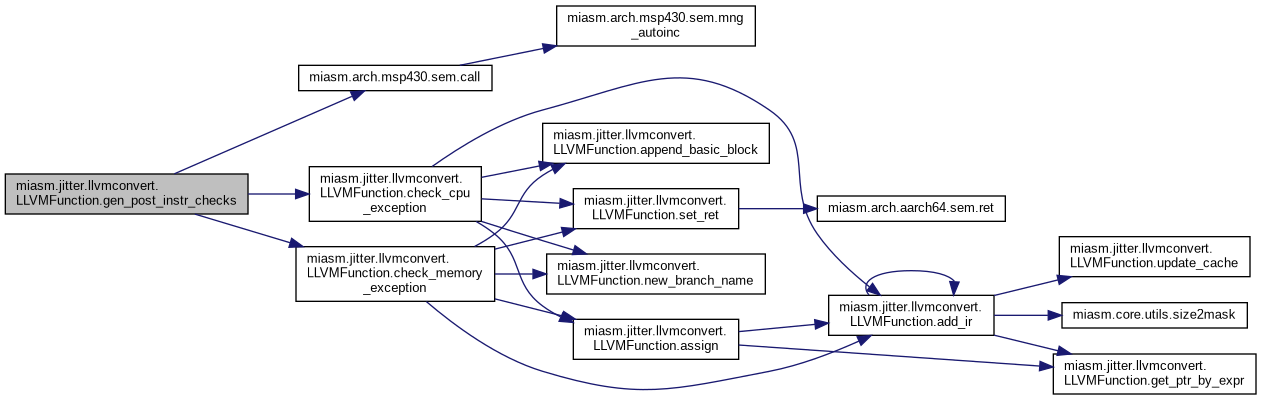

Here is the call graph for this function:

Here is the caller graph for this function:

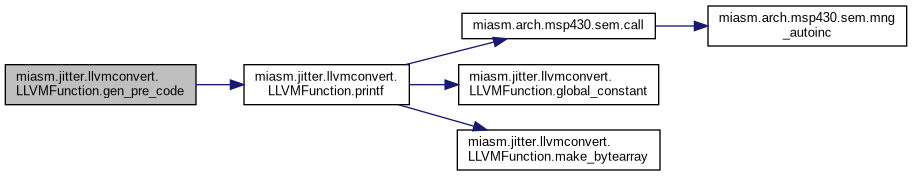

gen_pre_code()

def miasm.jitter.llvmconvert.LLVMFunction.gen_pre_code	(		self,
			instr_attrib
	)

Here is the call graph for this function:

Here is the caller graph for this function:

get_assembly()

def miasm.jitter.llvmconvert.LLVMFunction.get_assembly

(

self

)

Here is the call graph for this function:

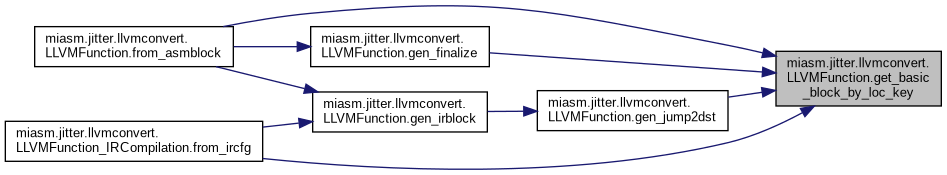

get_basic_block_by_loc_key()

def miasm.jitter.llvmconvert.LLVMFunction.get_basic_block_by_loc_key	(		self,
			loc_key
	)

Here is the caller graph for this function:

get_bytecode()

def miasm.jitter.llvmconvert.LLVMFunction.get_bytecode

(

self

)

Here is the call graph for this function:

get_function_pointer()

def miasm.jitter.llvmconvert.LLVMFunction.get_function_pointer

(

self

)

Here is the call graph for this function:

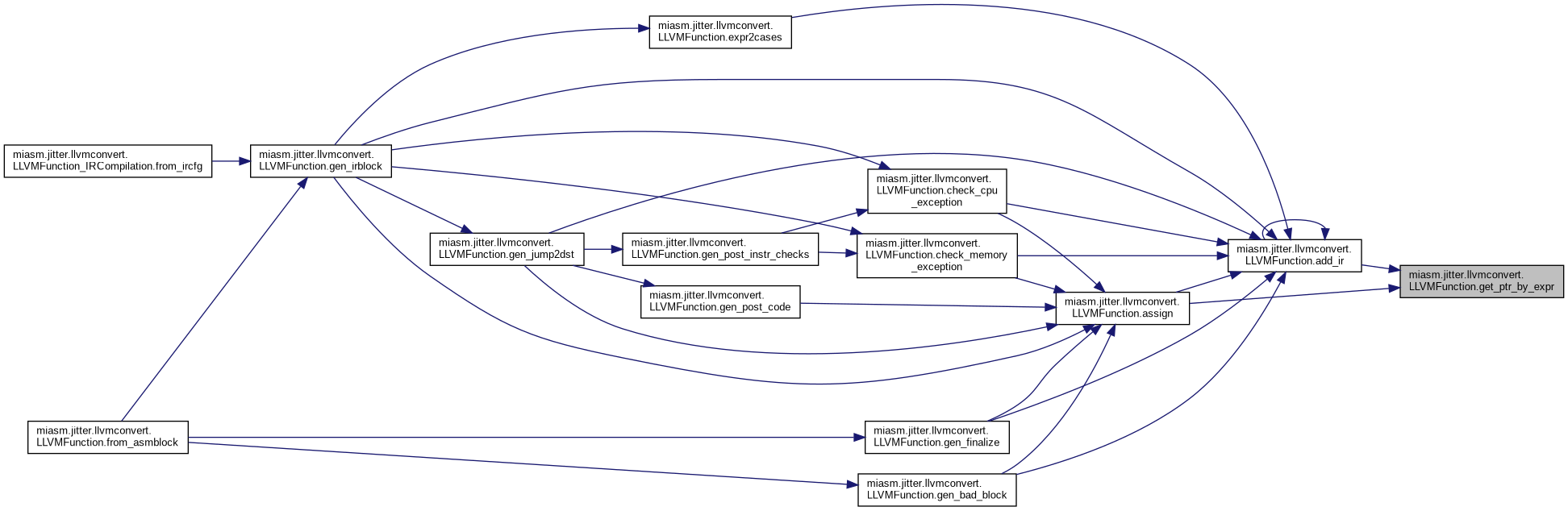

get_ptr_by_expr()

def miasm.jitter.llvmconvert.LLVMFunction.get_ptr_by_expr	(		self,
			expr
	)

"Return a pointer casted corresponding to ExprId expr. If it is not
already computed, compute it at the end of entry_bloc

Here is the caller graph for this function:

global_constant()

def miasm.jitter.llvmconvert.LLVMFunction.global_constant	(		self,
			name,
			value
	)

Inspired from numba/cgutils.py

Get or create a (LLVM module-)global constant with *name* or *value*.

Here is the caller graph for this function:

init_fc()

def miasm.jitter.llvmconvert.LLVMFunction.init_fc

(

self

)

Reimplemented in miasm.jitter.llvmconvert.LLVMFunction_IRCompilation.

Here is the caller graph for this function:

make_bytearray()

def miasm.jitter.llvmconvert.LLVMFunction.make_bytearray	(		self,
			buf
	)

Inspired from numba/cgutils.py

Make a byte array constant from *buf*.

Here is the caller graph for this function:

new_branch_name()

def miasm.jitter.llvmconvert.LLVMFunction.new_branch_name

(

self

)

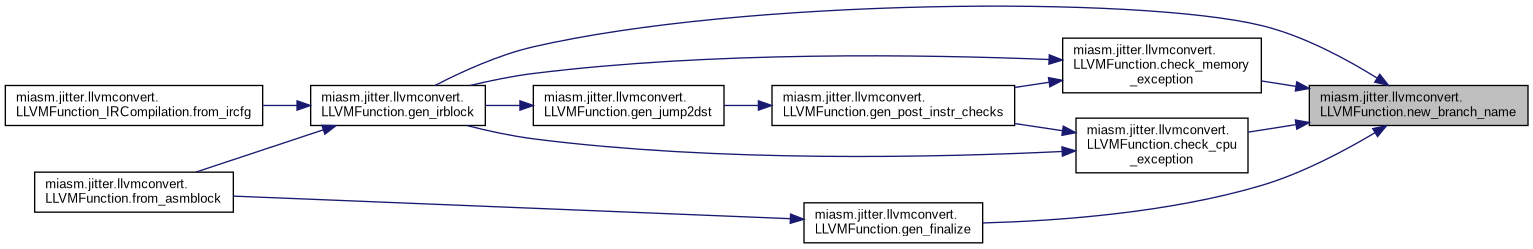

Here is the caller graph for this function:

optimise()

def miasm.jitter.llvmconvert.LLVMFunction.optimise

(

self

)

Here is the call graph for this function:

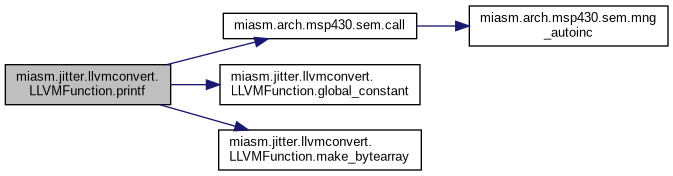

printf()

def miasm.jitter.llvmconvert.LLVMFunction.printf	(		self,
			format,
		*	args
	)

Inspired from numba/cgutils.py

Calls printf().
Argument `format` is expected to be a Python string.
Values to be printed are listed in `args`.

Note: There is no checking to ensure there is correct number of values
in `args` and there type matches the declaration in the format string.

Here is the call graph for this function:

Here is the caller graph for this function:

set_ret()

def miasm.jitter.llvmconvert.LLVMFunction.set_ret	(		self,
			var
	)

Here is the call graph for this function:

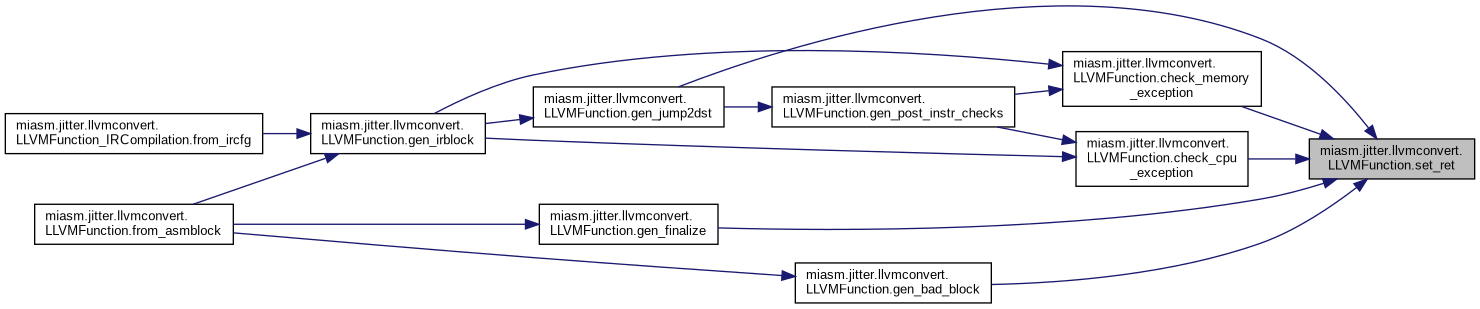

Here is the caller graph for this function:

update_cache()

def miasm.jitter.llvmconvert.LLVMFunction.update_cache	(		self,
			name,
			value
	)

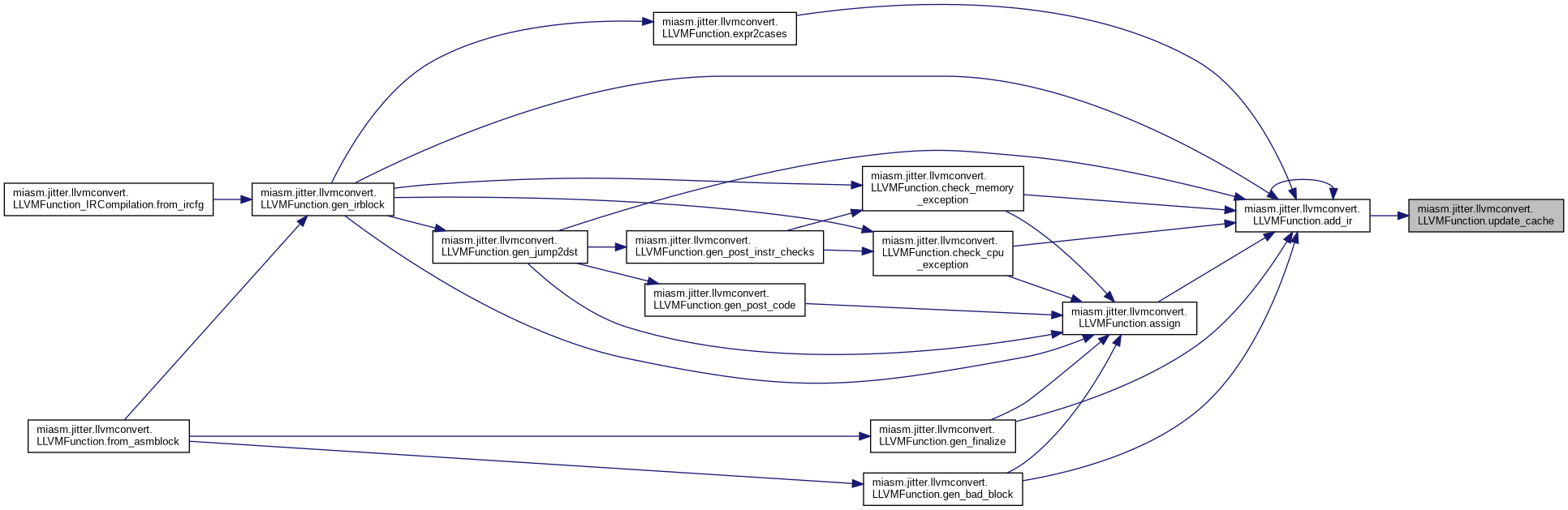

Here is the caller graph for this function:

verify()

def miasm.jitter.llvmconvert.LLVMFunction.verify

(

self

)

Here is the call graph for this function:

Member Data Documentation

branch_counter

miasm.jitter.llvmconvert.LLVMFunction.branch_counter

builder

miasm.jitter.llvmconvert.LLVMFunction.builder

entry_bbl

miasm.jitter.llvmconvert.LLVMFunction.entry_bbl

expr_cache

miasm.jitter.llvmconvert.LLVMFunction.expr_cache

fc

miasm.jitter.llvmconvert.LLVMFunction.fc

llvm_context

miasm.jitter.llvmconvert.LLVMFunction.llvm_context

local_vars

miasm.jitter.llvmconvert.LLVMFunction.local_vars

local_vars_pointers

miasm.jitter.llvmconvert.LLVMFunction.local_vars_pointers

log_mn

bool miasm.jitter.llvmconvert.LLVMFunction.log_mn = False

static

log_regs

bool miasm.jitter.llvmconvert.LLVMFunction.log_regs = True

static

main_stream

miasm.jitter.llvmconvert.LLVMFunction.main_stream

mod

miasm.jitter.llvmconvert.LLVMFunction.mod

my_args

miasm.jitter.llvmconvert.LLVMFunction.my_args

name

miasm.jitter.llvmconvert.LLVMFunction.name

name2bbl

miasm.jitter.llvmconvert.LLVMFunction.name2bbl

op_translate

dictionary miasm.jitter.llvmconvert.LLVMFunction.op_translate

static

Initial value:

=  {'x86_cpuid': 'x86_cpuid',
    }

Basics.

op_translate_with_size

dictionary miasm.jitter.llvmconvert.LLVMFunction.op_translate_with_size = {}

static

Add the size as first argument.

op_translate_with_suffix_size

dictionary miasm.jitter.llvmconvert.LLVMFunction.op_translate_with_suffix_size

static

Initial value:

=  {
        'bcdadd': 'bcdadd',
        'bcdadd_cf': 'bcdadd_cf',
    }

Add the size as suffix.

ret_type

miasm.jitter.llvmconvert.LLVMFunction.ret_type

---

The documentation for this class was generated from the following file:

• /home/serpilliere/projet/test_doc_miasm/miasm/miasm/jitter/llvmconvert.py
